TPCA8058-H,QFN-8 5*6/PSOP-8,SMD/MOS,N场,30V,38A,0.003Ω

应用:
 * 高效率DC-DC转换器
 * 笔记本电脑
 * 移动手机

特点:
(1) Small footprint due to a small and thin package
(2) High-speed switching
(3) Small gate change: QSW = 12 nC (typ.)
(4) Low drain-source on-resistance: RDS(ON) = 3.0 mΩ (typ.) (VGS = 4.5 V)
(5) Low leakage current: IDSS = 10 μA (max) (VDS = 30 V)
(6) Enhancement mode: Vth = 1.3 to 2.3 V (VDS = 10 V, ID = 0.5 mA)

产品型号:TPCA8058-H
MOSFETs Silicon N-Channel MOS (U-MOS-H)

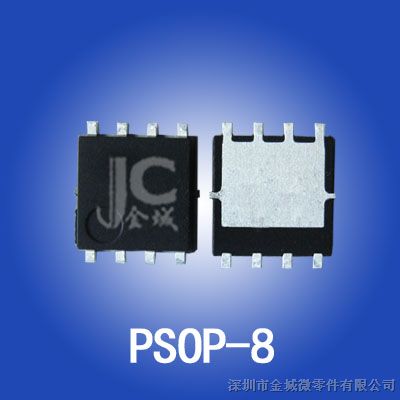

封装:QFN-8 5*6/PSOP-8

品牌：TOSHIBA/东芝

源漏极间雪崩电压V(br)dss(V):30

夹断电压VGS(V):±20

漏极电流Id(A):38

源漏极导通电阻rDS(on)(Ω):0.003 @VGS = 10 V

开启电压VGS(TH)(V):2.3

功率PD(W):52

输入电容Ciss(PF):3600 typ.

通道极性:N沟道

低频跨导gFS(s)：

单脉冲雪崩能量EAS(mJ):187

导通延迟时间Td(on)(ns):13 typ.

上升时间Tr(ns):4.3 typ.

关断延迟时间Td(off)(ns):48 typ.

下降时间Tf(ns):6.9 typ.

温度(℃): -55 ~150

描述:TPCA8058-H,30V,38A,0.003Ω N-沟道增强型场效应晶体管
